Applied Spatial Data Analysis

Chapter 3 - Spatial Lattice Data I

Dr. Şebnem Er

Department of Statistical Sciences, University of Cape Town

ASDA: Spatial Lattice Data Analysis I

  1. Introduction to lattice data and plotting
  2. Spatial dependency
  3. Defining spatial neighbours
  4. Defining spatial weights matrices
  5. Global Moran’s \(I\)
  6. Geary’s \(C\)

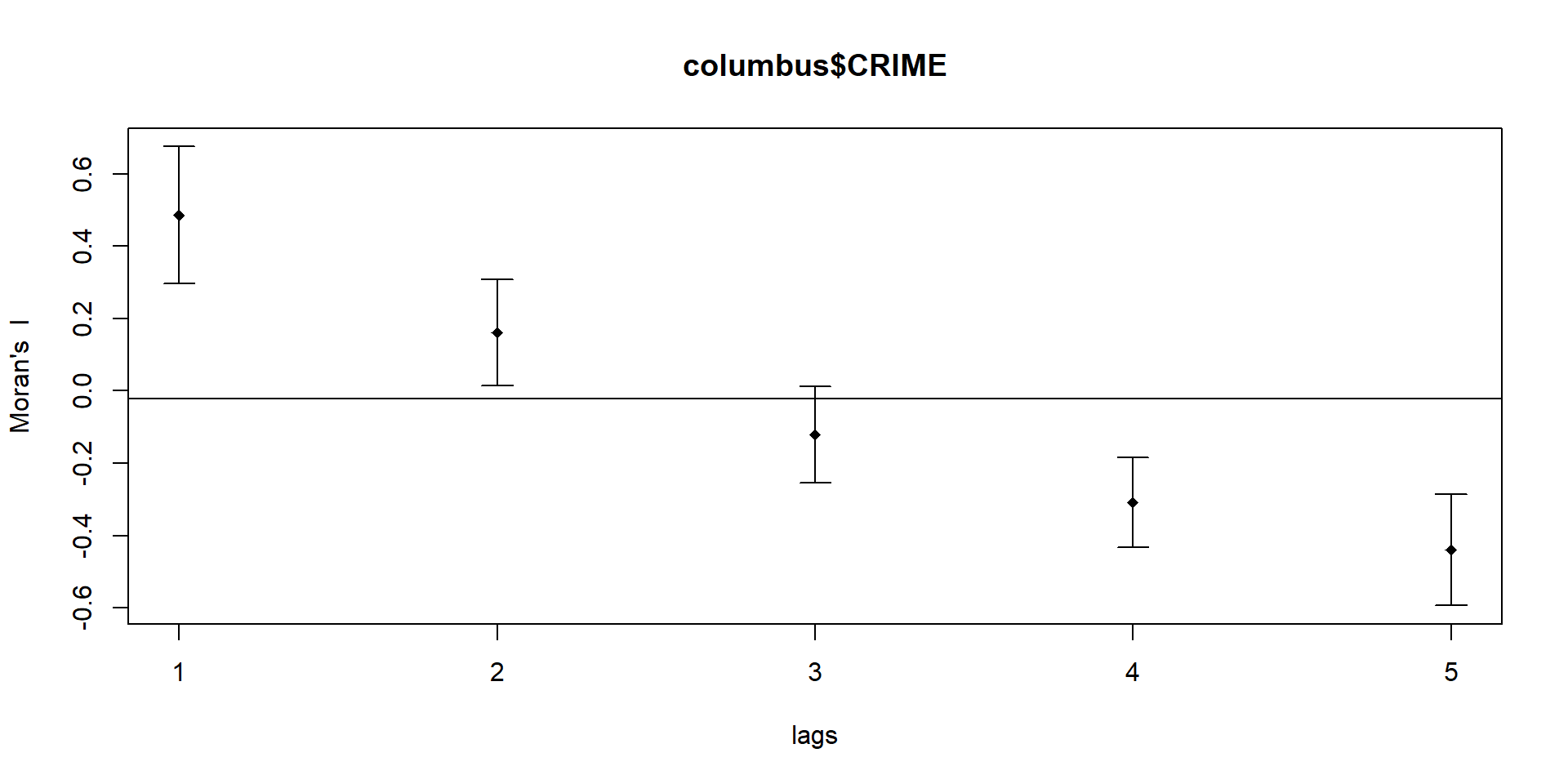

  7. Spatial correlogram
  8. Local Moran’s \(I\)

Resources

For general spatial data handling in R using simple features (sf).

Required reading: Chapter 10.

[1] Anselin , Luc, (1999). Spatial Econometrics: Methods and Models. Luwer Academic Publishers.

[2] Arbia , Giuseppe, (2014). A Primer for Spatial Econometrics : With Applications in R. Palgrave Macmillan UK. (available at UCT library online resource)

[3] Elhorst , Paul. J. (2014). Spatial Econometrics : From Cross-Sectional Data to Spatial Panels. Springer Berlin

[4] Gelfand, A.E., Diggle, P., Guttorp , P., Fuentes, M. and Fitzmaurice, G. (2010). Handbook of Spatial Statistics. Chapman & Hall/CRC. (available at UCT library online resource) Brilliant resource to have. Part 4 is dedicated to SPPs. *

[6] Haining , Robert, (2004). Spatial Data Analysis, Theory and Practice. Cambridge University Press. *

[7] https://geodacenter.github.io/

  • Anselin, Luc (1999). Spatial Econometrics: Methods and Models. Kluwer Academic Publishers.
  • Arbia, Giuseppe (2014). A Primer for Spatial Econometrics: With Applications in R. Palgrave Macmillan UK.
  • Elhorst, Paul J. (2014). Spatial Econometrics: From Cross-Sectional Data to Spatial Panels. Springer.
  • Gelfand, A. E., Diggle, P., Guttorp, P., Fuentes, M. & Fitzmaurice, G. (2010). Handbook of Spatial Statistics. Chapman & Hall/CRC.
  • Haining, Robert (2004). Spatial Data Analysis: Theory and Practice. Cambridge University Press.
  • GeoDa resources: https://geodacenter.github.io/

Example Datasets

Throughout these lectures we use the Boston house-price data, Columbus crime data, and EU regional data collected at NUTS 2 level.

  • Boston data: classic Harrison and Rubinfeld (1978) housing data, with 506 census tracts and 23 variables.
  • Columbus data: spatial crime data for Columbus.
  • EU2 data: regional data for the second level of the Nomenclature of Territorial Units for Statistics (NUTS 2), widely used by Eurostat and other EU bodies.

A spatial data set includes the geometry of the spatial units, spatial coordinates or other spatial indexing information, and the attributes associated with each unit. These attributes may include economic, demographic, social, environmental, or other variables.

The three example data sets illustrate the same lattice-data idea: each observation belongs to a spatial unit, and each unit has both geometry and attributes. The geometry lets us construct neighbourhood relationships; the attributes are the variables we analyse.

Columbus Dataset

A major pleasure in working with spatial data is their visualisation. Maps are amongst the most compelling graphics.

The Columbus data provide a spatially referenced example used throughout the lecture.

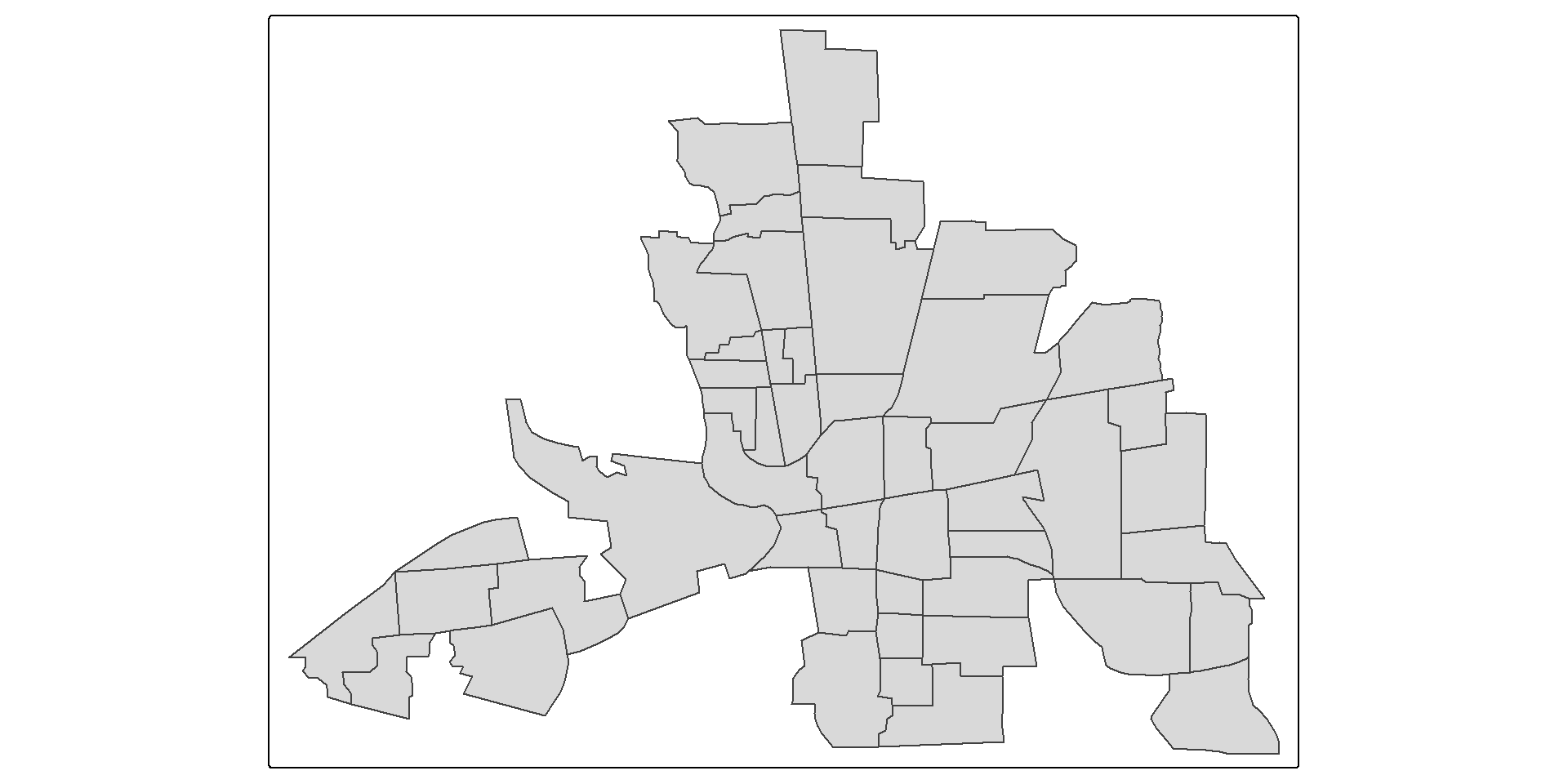

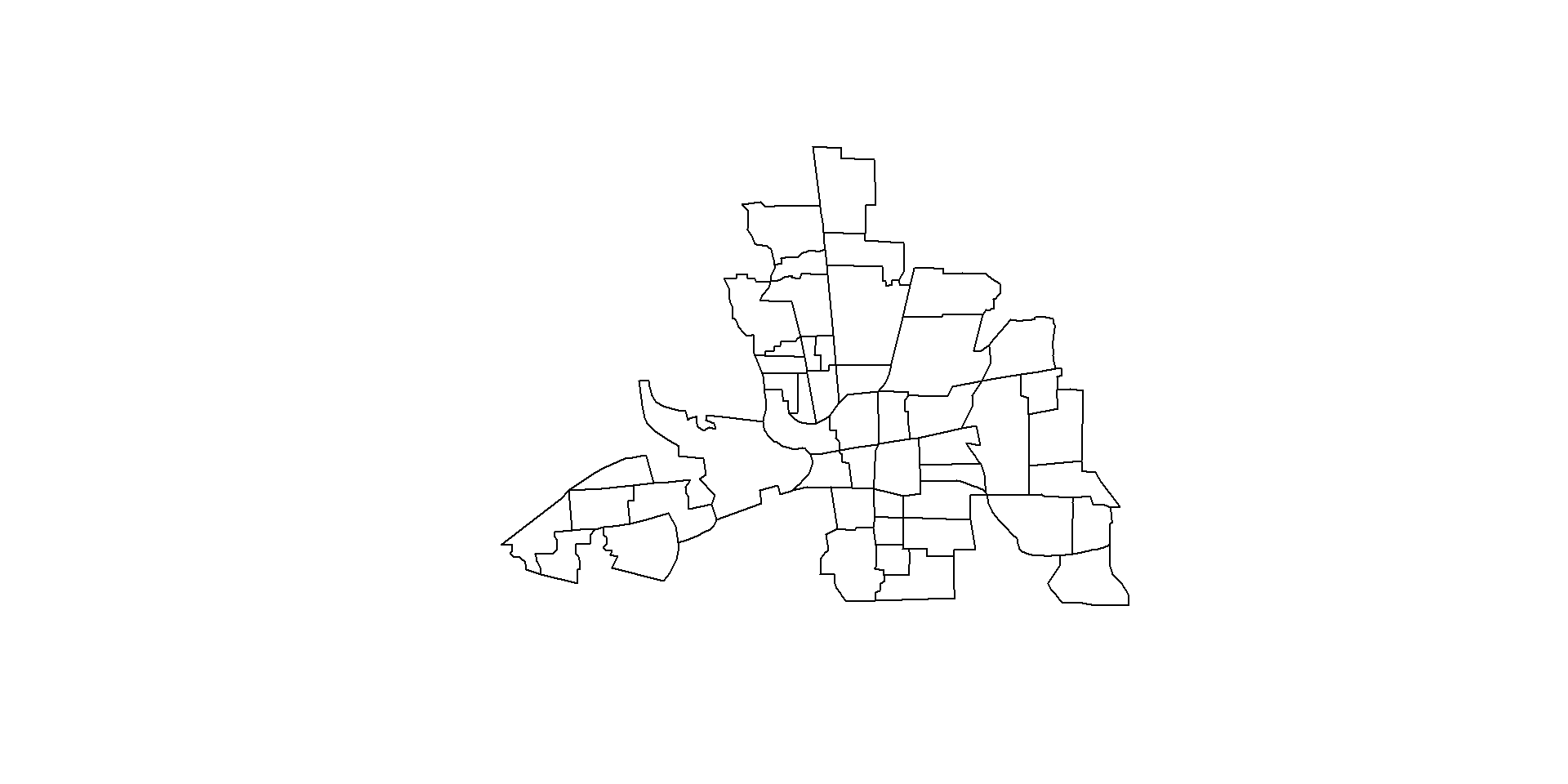

plot(sf::st_geometry(columbus))

library(tmap)
tm_shape(columbus) + tm_polygons()

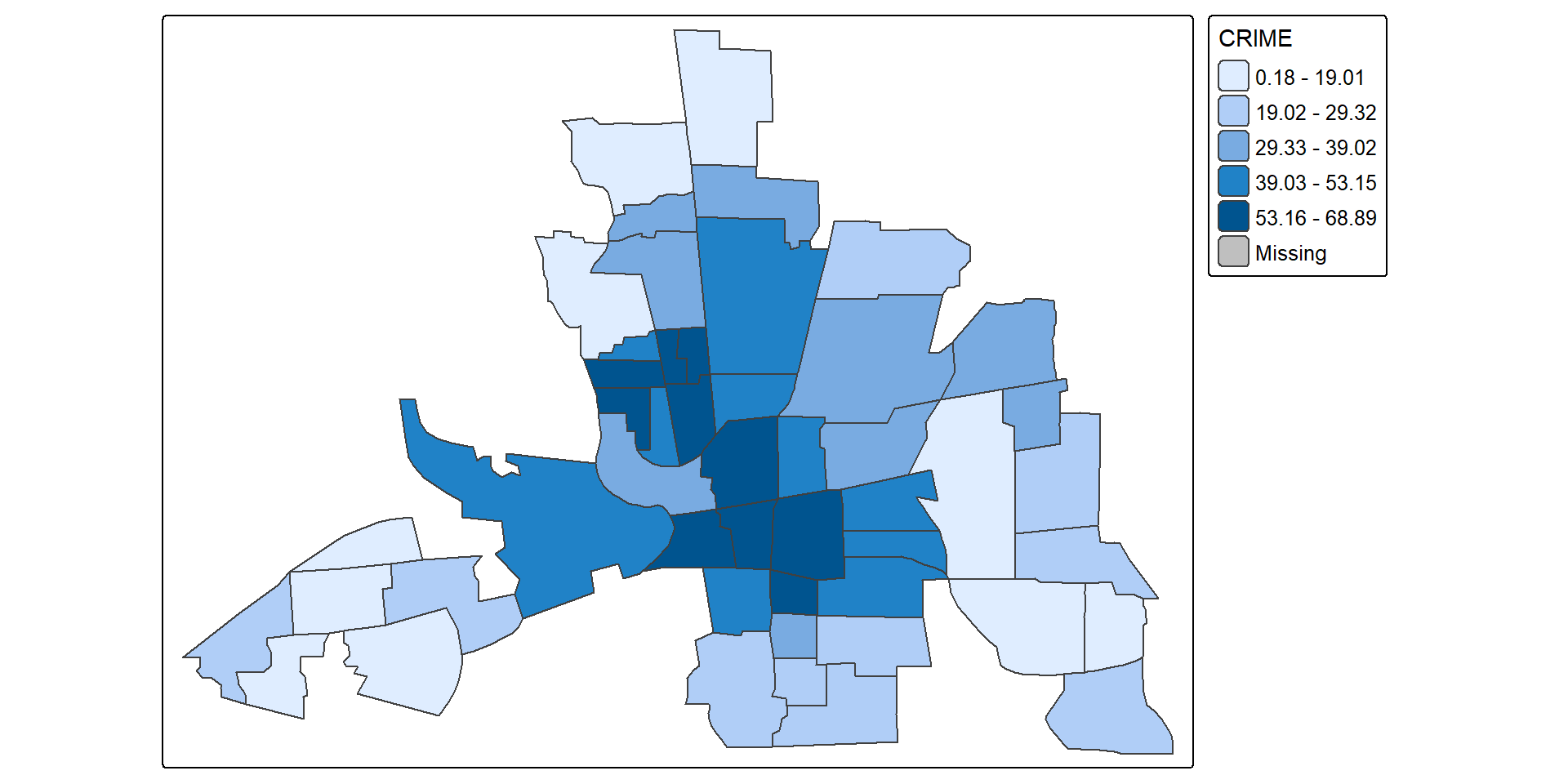

Plot of Crime Variable

tm_shape(columbus) + tm_polygons(style="quantile", col = "CRIME") +
  tm_legend(outside = TRUE, text.size = .8)

EU Nuts2 Dataset

EU NUTS 2 level GDP per capita (Euros), 2009.

Analysing Spatial Lattice Data

Tobler’s first law of geography:

“Everything is related to everything else, but close things are more related than things that are far apart.”

From this definition, we need to identify:

  • what we mean by spatial dependence;
  • how we measure spatial dependence;
  • who the neighbours of each spatial unit are; and
  • what the strength of the relationship is.

For each unit we therefore need a list of neighbours and a corresponding set of spatial weights.

Definition of Spatial Dependence

Spatial dependence in a collection of sample observations refers to the fact that an observation associated with location \(i\) depends on observations at locations \(j\), where \(i\neq j\).

Why does spatial dependence occur? Two main reasons are highlighted by LeSage (1998, pp. 4–5):

  • measurement error related to the data-collection process for geographical units;
  • the spatial dimension of the research problem may itself be important in explaining the process under study.

Positive and Negative Spatial Dependence

Positive spatial dependence

Objects—points, areas, or lines—that are close in space tend to assume similar values. This produces spatial clustering of similar values.

Negative spatial dependence

Objects that are close in space tend to assume dissimilar values. This can produce an alternating or checkerboard-like arrangement.

Spatial dependence can therefore take the form of spatial correlation.

Ref: Giuseppe Arbia lecture notes, SEAI 2011.

Exploring Spatial Dependence

The level of spatial dependence can be explored using graphical techniques and statistical measures:

  • graphical representations of spatial dependence;
  • Moran’s \(I\);
  • Geary’s \(C\).

Cliff and Ord (1972, 1975, 1981) found Moran’s \(I\) to be a particularly useful measure in many settings.

Global Moran’s I Statistic

Global Moran’s \(I\) combines attribute similarity and locational similarity.

For a variable \(y\), let

\[ z_i = y_i-\bar y, \]

and let \(W^s=(w^s_{ij})\) denote the row standardizesd spatial weights matrix. The general form of Moran’s \(I\) is

\[ I = \frac{Z'W^sZ}{Z'Z} \]

where

\[ \sum_{i,j=1}^{n}w^s_{ij}=n. \]

For a row-standardised weights matrix, the spatial lag \(W^sZ\) is the weighted mean of neighbouring standardised observations.

How to Construct Weights’ Matrix

For geographic lattice data, there are two broad choices for \(W\) (Arbia, 2006, pp.37-38, Fischer et al., 2010, pp.66-68, LeSage, 1999, pp.11-13):

Boundary-based weights
  • Rook
  • Bishop
  • Queen
Distance-based weights
  • \(k\)-nearest-neighbour connectivity
  • critical cut-off connectivity
  • inverse-distance connectivity
  • distance-decay functions
  • combinations of these approaches

Defining Spatial Neighbours: Boundary Based

Neighbourhood relationships can be defined in several ways (Arbia, 2005, p. 37).

For polygon data, a simple definition is contiguity: polygons \(i\) and \(j\) are neighbours when they share part of their boundary.

The three forms considered here are:

  • Rook: common side;
  • Bishop: common vertex only;
  • Queen: common side or common vertex.
Spatial Weights Based on Boundaries

A hypothetical five-region configuration is used to construct and interpret a binary contiguity matrix \(W\).

Spatial Weights Based on Boundaries: Rook Contiguity

Rook contiguity: define

\[ w_{ij} = \begin{cases} 1, & \text{if regions } i \text{ and } j \text{ share a common side},\\ 0, & \text{otherwise}. \end{cases} \]

The diagonal is normally set to zero, \(w_{ii}=0\), because a region is not treated as its own neighbour.

Spatial Weights Based on Boundaries: Bishop Contiguity

Bishop contiguity: define

\[ w_{ij} = \begin{cases} 1, & \text{if regions } i \text{ and } j \text{ share a common vertex only},\\ 0, & \text{otherwise}. \end{cases} \]

Spatial Weights Based on Boundaries: Queen Contiguity

Queen contiguity: define

\[ w_{ij} = \begin{cases} 1, & \text{if regions } i \text{ and } j \text{ share a common side or vertex},\\ 0, & \text{otherwise}. \end{cases} \]

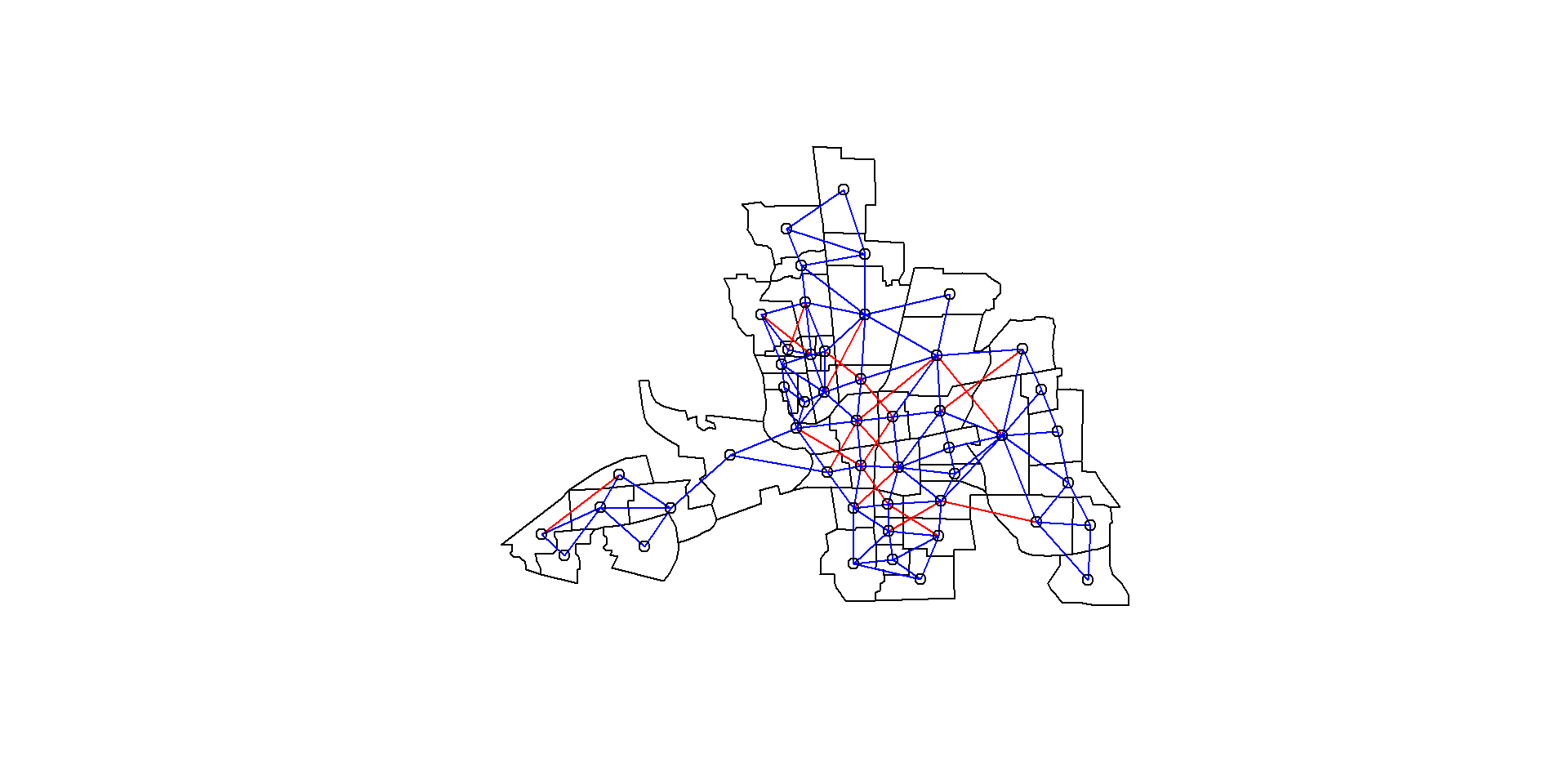

Difference between Queen and Rook

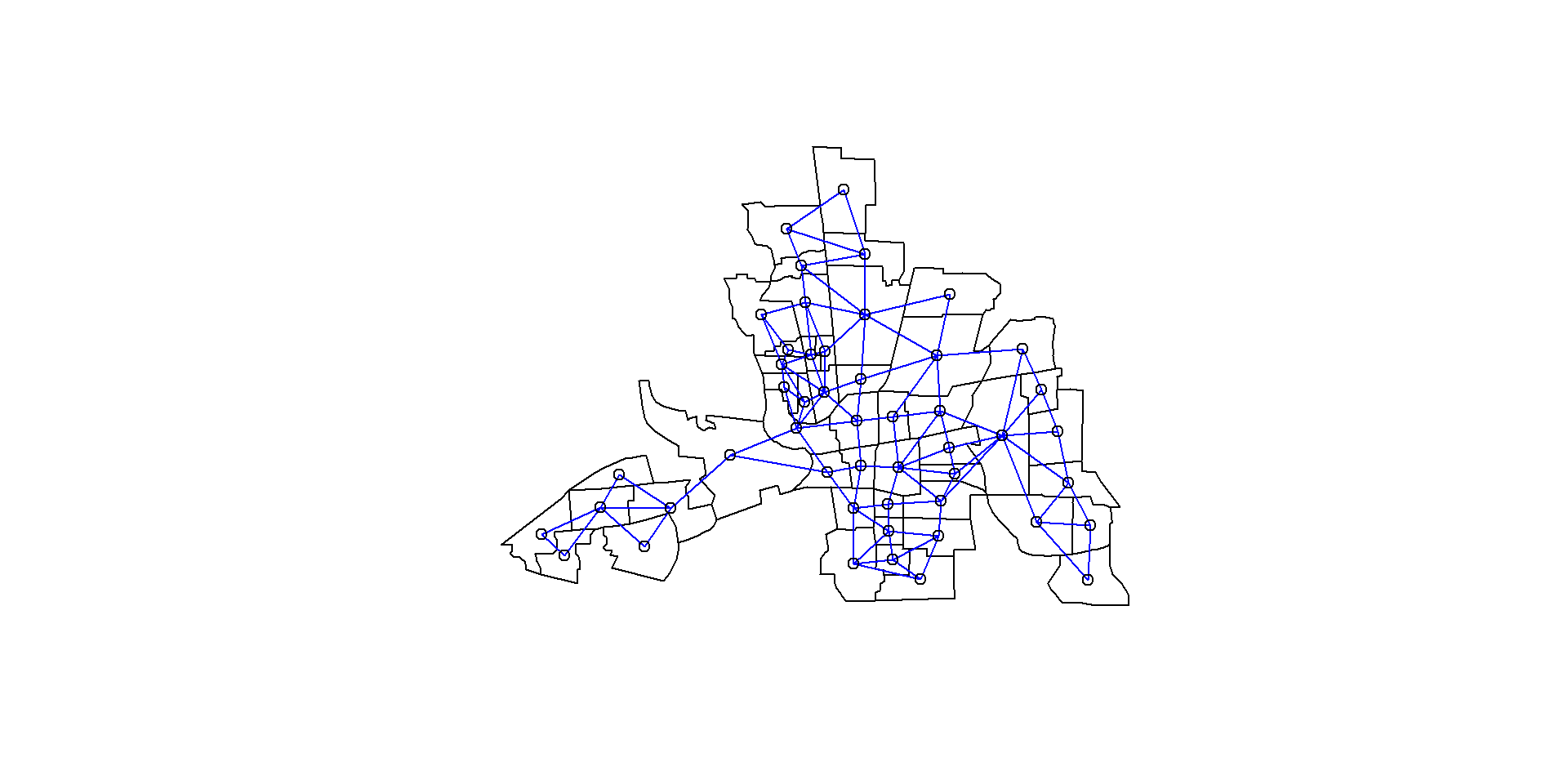

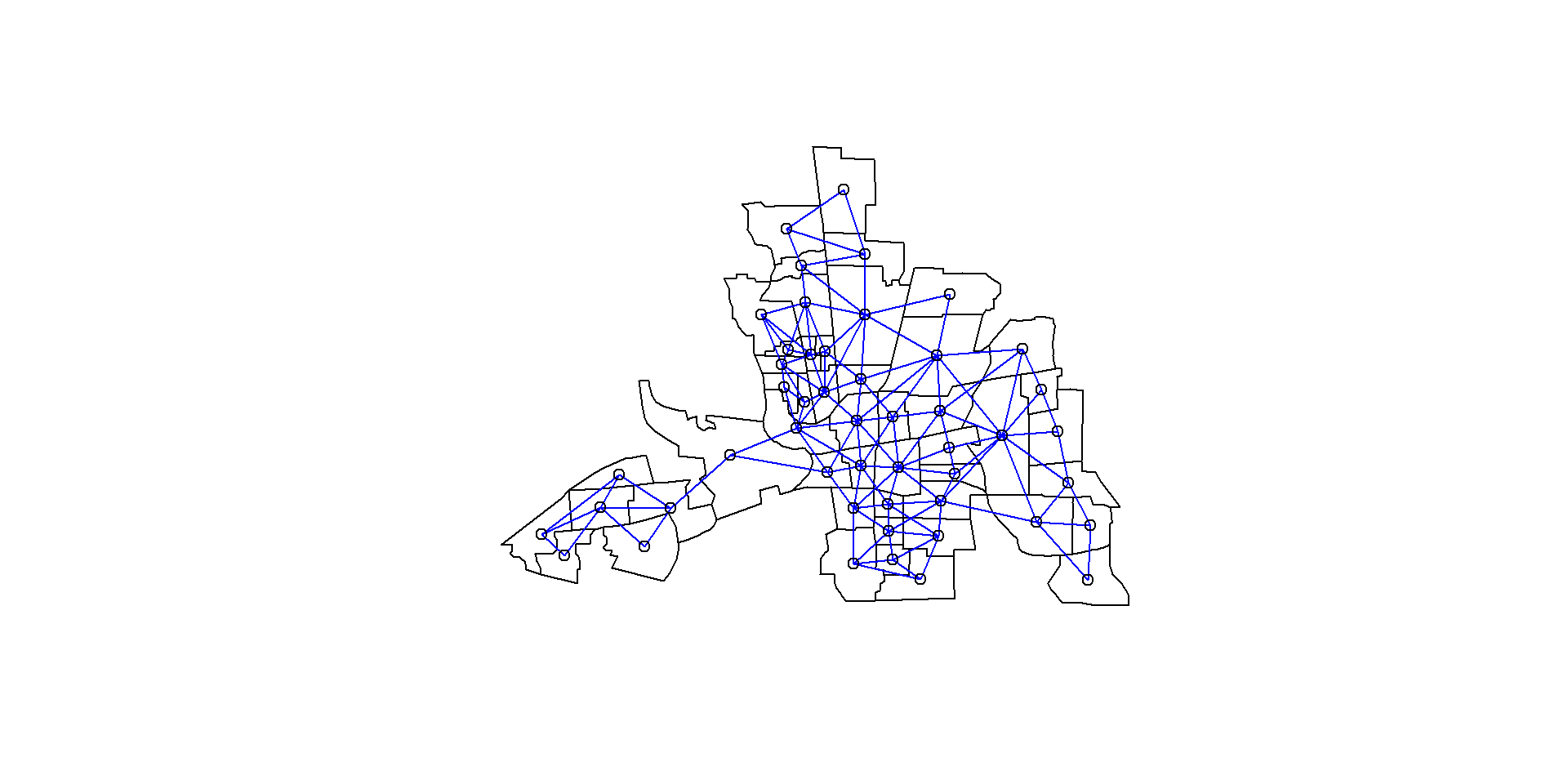

plot(st_geometry(columbus))
plot(queen_nb, coords, add=TRUE, col="red")
plot(rook_nb, coords, add=TRUE, col="blue")

Defining Spatial Neighbours – Distance Based

Neighbourhood relationships may also be defined by distance.

\(k\)-nearest-neighbour neighbourhood

For each spatial unit \(i\), choose the \(k\) observations whose representative locations are closest to \(i\). (k)-nearest-neighbour neighbourhood

For the first-nearest-neighbour case,

\[ w_{ij} = \begin{cases} 1, & \text{if } d_{ij} = \displaystyle\min_{k \neq i} d_{ik}, \\[4pt] 0, & \text{otherwise}. \end{cases} \]

Critical cut-off neighbourhood

Two units (i) and (j) are neighbours if

\[ w_{ij} = \begin{cases} 1, & \text{if } d_{ij} < d^*, \\[4pt] 0, & \text{otherwise}. \end{cases} \]

where \(d_{ij}\) is the adopted distance measure and \(d^*\) is a chosen critical cut-off.

Spatial Weights Based on Distances: 1st Nearest Neighbour – Obs (1)

For observation (1), calculate pairwise centroid distances and identify the closest observation. The first-nearest-neighbour link is then entered in the neighbour structure.

Spatial Weights Based on Distances: 1st Nearest Neighbour – Obs (2)

For observation (2), calculate pairwise centroid distances and identify the closest observation. The first-nearest-neighbour link is then entered in the neighbour structure.

Spatial Weights Based on Distances: 1st Nearest Neighbour – Obs (3)

For observation (3), calculate pairwise centroid distances and identify the closest observation. The first-nearest-neighbour link is then entered in the neighbour structure.

Spatial Weights Based on Distances: 1st Nearest Neighbour – Obs (4)

For observation (4), calculate pairwise centroid distances and identify the closest observation. The first-nearest-neighbour link is then entered in the neighbour structure.

Spatial Weights Based on Distances: 1st Nearest Neighbour – Obs (5)

For observation (5), calculate pairwise centroid distances and identify the closest observation. The first-nearest-neighbour link is then entered in the neighbour structure.

Spatial Weights Based on Distances: 1st Nearest Neighbour

Combining the first-nearest-neighbour relationships for all five observations gives the complete first-nearest-neighbour graph.

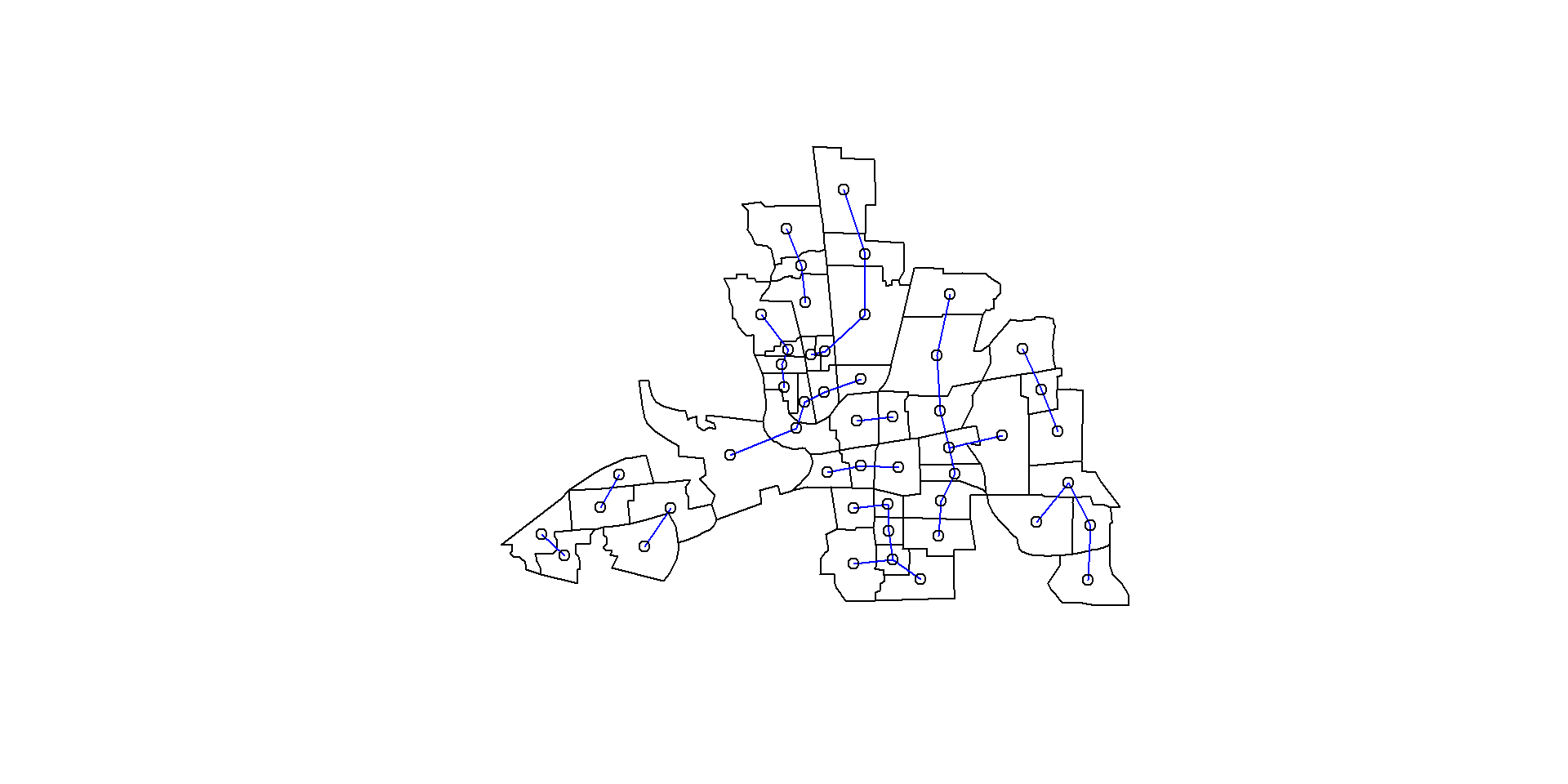

Columbus Dataset: 1st Nearest Neighbours
library(sf)
library(spdep)

whoisthefirstnear=knearneigh(coords,k=1,longlat=TRUE)
knn1columbus=knn2nb(whoisthefirstnear)
plot(st_geometry(columbus))
plot(knn1columbus, coords, add=TRUE, col="blue")

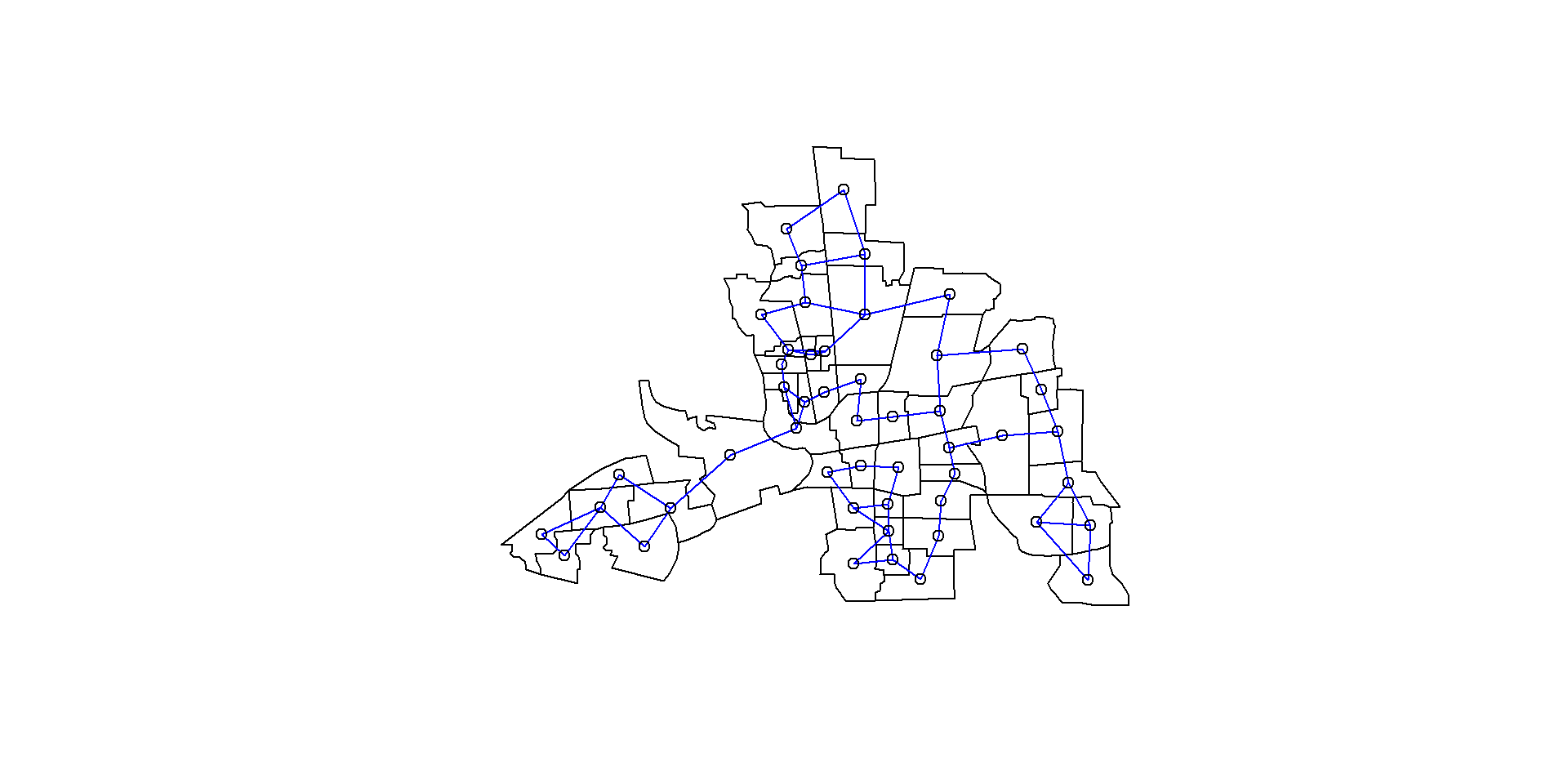

Columbus Dataset: 2 Nearest Neighbours
whois2near=knearneigh(coords,k=2,longlat=TRUE)
knn2columbus=knn2nb(whois2near)
plot(st_geometry(columbus))
plot(knn2columbus, coords, add=TRUE, col="blue")

Critical cut-off neighbourhood

To define neighbours within a fixed distance, we need a threshold distance.

One way of selecting a threshold is:

  1. calculate the centroid of each polygon;
  2. calculate the distance from each centroid to its first nearest neighbour;
distBetwNeigh1=nbdists(knn1columbus,coords,longlat=TRUE)
distBetwNeigh1=unlist(distBetwNeigh1)
distBetwNeigh1
 [1] 63.98112 37.46759 57.90275 34.99180 50.68549 60.02289 41.50970 34.99180
 [9] 53.16288 42.98225 13.85976 13.85976 15.87821 15.87821 36.74052 20.37838
[17] 42.32020 20.37838 21.89658 50.76316 67.50447 35.75701 42.32020 26.18731
[25] 34.14447 34.14447 25.62287 34.90927 32.08072 32.08072 35.72122 45.38893
[33] 25.62287 44.54357 28.40851 35.72122 32.67643 25.12110 29.91036 47.60799
[41] 45.38893 44.54357 25.12110 33.47541 37.48757 29.91036 51.94091 28.12354
[49] 32.04551
  1. take the maximum of these first-neighbour distances.

For the Columbus example, the maximum first-nearest-neighbour distance is approximately

all.linkedTresh=max(distBetwNeigh1)
all.linkedTresh
[1] 67.50447
dnbTresh1=dnearneigh(coords,0,68,longlat=TRUE)
summary(dnbTresh1)
Neighbour list object:
Number of regions: 49
Number of nonzero links: 252
Percentage nonzero weights: 10.49563
Average number of links: 5.142857
2 disjoint connected subgraphs
Link number distribution:

 1  2  3  4  5  6  7  8  9 10 11
 4  8  6  2  5  8  6  2  6  1  1
4 least connected regions:
6 10 21 47 with 1 link
1 most connected region:
28 with 11 links

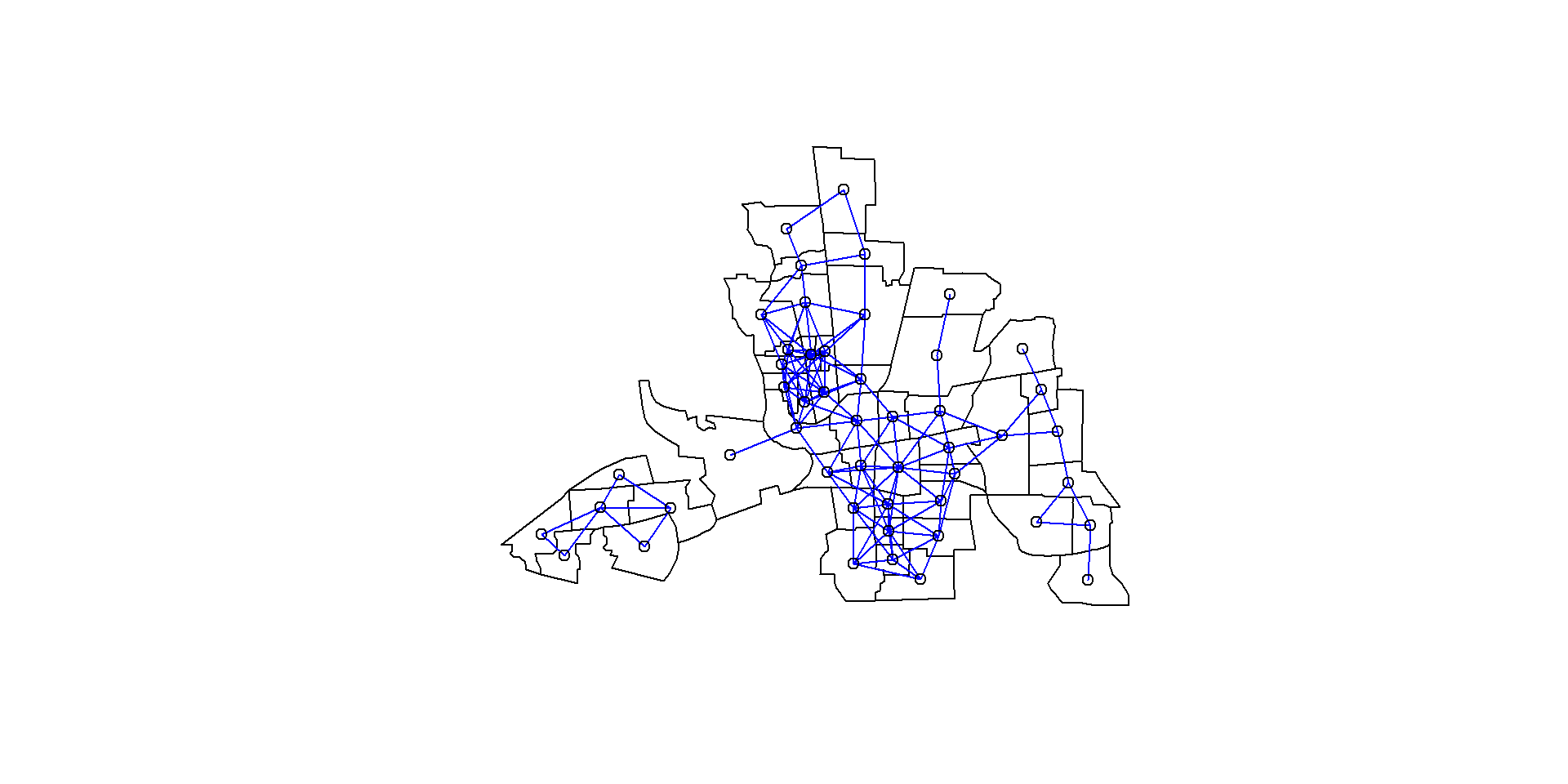

plot(st_geometry(columbus))
plot(dnbTresh1, coords, add=TRUE, col="blue")

If you examine this neighbourhood list object a bit more closely you will see that, Polygon1 is neighbours with Poly2 and Poly3; Polygon2 is neighbours with Poly1 and Poly4; Polygon3 is neighbours with Poly1, Poly4 and Poly5 and so on:

dnbTresh1[1:3]
[[1]]
[1] 2 3

[[2]]
[1] 1 4

[[3]]
[1] 1 4 5

In calculation of the weights that will be used to create the spatially lagged variables, only the neighbours values are going to be used. For example for the 1st Polygon, the values of neighbouring Poly2 and Poly3 will be used. Before doing this the nb values need to be standardized, so that the row

Neighbours to Weights Matrix

Here we will work with the Critical Cut-off nearest neighbours

dnbTresh1.listw=nb2listw(dnbTresh1,style="W",zero.policy=FALSE)
class(dnbTresh1.listw)
[1] "listw" "nb"
dnbTresh1.listw$weights[1:5]
[[1]]
[1] 0.5 0.5

[[2]]
[1] 0.5 0.5

[[3]]
[1] 0.3333333 0.3333333 0.3333333

[[4]]
[1] 0.25 0.25 0.25 0.25

[[5]]
[1] 0.2 0.2 0.2 0.2 0.2

In matrix format rather than a list:

listw2mat(dnbTresh1.listw)[1:5,1:5]
          1    2    3         4         5
1 0.0000000 0.50 0.50 0.0000000 0.0000000
2 0.5000000 0.00 0.00 0.5000000 0.0000000
3 0.3333333 0.00 0.00 0.3333333 0.3333333
4 0.0000000 0.25 0.25 0.0000000 0.0000000
5 0.0000000 0.00 0.20 0.0000000 0.0000000

Choosing a threshold of \(68\) therefore guarantees that every centroid has at least one neighbour. As you can see row sum of the \(W^s\) is always 1, we row-standardized the W matrix.

Exploring Spatial Dependence

The level of spatial dependence (spatial autocorrelation) can be explored with:

  • Moran’s \(I\);
  • Geary’s \(C\);
  • graphical representations such as the Moran scatter plot, correlogram, and variogram.

Some notation

To simplify notation:

  • \(n\): number of spatial areas;
  • \(i,j\): two areal units;
  • \(y_i\): value of the variable of interest at area \(i\);
  • \(z_i=y_i-\bar y\): mean-centred value at area \(i\);
  • \(w_{ij}\): measure of spatial connection between \(i\) and \(j\);
  • \(W=(w_{ij})\): spatial weights matrix;
  • \(W^{(s)}\): row-standardised spatial weights matrix.

Global Measures of Spatial Autocorrelation: Moran’s I Statistic

Moran’s \(I\) is a global measure: it provides one summary of spatial autocorrelation for the entire spatial pattern.

\[ I = \frac{Z'W^sZ}{Z'Z} \]

With row-standardised \(W^s\), this is closely related to the cross-product between the centred variable \(Z'=Y-\bar{Y}\) and its spatial lag \(W^sZ\).

Moran’s I Expected Value and Variance

Under the randomisation null hypothesis, the expected value of Moran’s \(I\) is

\[ E(I)=-\frac{1}{n-1}. \]

Thus, under the null, Moran’s \(I\) is not centred exactly at zero for a finite sample. As \(n\) increases,

\[ E(I)\longrightarrow 0. \]

A standardised test statistic can be constructed as

\[ Z_I= \frac{I-E(I)} {\sqrt{\operatorname{Var}(I)}}. \]

The variance depends on the spatial weights and on the assumptions used for the reference distribution.

Ref: Fischer & Wang (2011), p. 25.

The variance of Moran’s I

\[ \operatorname{Var}(I) = \frac{N S_4 - S_3 S_5} {(N-1)(N-2)(N-3)W^2} - [E(I)]^2 \]

where

\[ S_1 = \frac{1}{2} \sum_i \sum_j (w_{ij} - w_{ji})^2 \]

\[ S_2 = \sum_i \left( \sum_j w_{ij} - \sum_j w_{ji} \right)^2 \]

\[ S_3 = \frac{ N^{-1}\sum_i (x_i-\bar{x})^4 }{ \left[ N^{-1}\sum_i (x_i-\bar{x})^2 \right]^2 } \]

and

\[ S_4 = (N^2-3N+3)S_1 - NS_2 + 3W^2 \]

\[ S_5 = (N^2-N)S_1 - 2NS_2 + 6W^2 \]

Comparing Moran’s I

Two broad approaches are used to assess whether an observed Moran’s \(I\) departs significantly from the null hypothesis of no spatial autocorrelation:

  1. random permutation;
  2. an approximate sampling distribution for \(I\).

Ref: lecture comparison example and linked video, around minute 22:25.

Moran’s I Statistics
  • A Moran’s \(I\) value above its expected value indicates positive spatial autocorrelation.
  • A Moran’s \(I\) value below its expected value indicates negative spatial autocorrelation.
  • Moran’s \(I\) is a global measure: it does not by itself identify where local clusters or outliers occur.
Calculation of Moran’s I for the Columbus Dataset with Cut-off neighbourhood

For the Columbus CRIME variable, first centre the observations:

\[ z_i = y_i-\bar y. \]

The first part of the centred vector in the original analysis is:

columbus$CRIME - mean(columbus$CRIME)
 [1] -19.402844 -16.327070  -4.502043  -2.741064  15.602686  -9.062166
 [7] -34.950555   3.297034  -4.612907  -1.127989  27.146624  21.576845
[13]  11.587305  21.937308  13.456663  19.709887   1.739950   8.833662
[19]  19.393141 -34.905027   4.945250  -1.423776 -15.080320   3.169047
[25]  26.170351   5.840918  17.665606  21.790961  25.621622  33.763220
[31] -17.451610 -15.983232   6.839339 -11.154796   4.046229 -20.823268
[37]   7.316252  18.582114 -16.027961 -18.887525 -16.223678 -18.636934
[43]   1.534788  -9.166561  -6.100336 -18.598291  -7.305963  -8.483558
[49] -12.587333

The critical-cut-off neighbourhood is then represented through a row-standardised spatial weights matrix \(W^{(s)}\).

weightsmatrix_s = listw2mat(dnbTresh1.listw)
head(weightsmatrix_s)
          1    2    3         4         5 6    7    8 9 10  11  12 13 14  15 16
1 0.0000000 0.50 0.50 0.0000000 0.0000000 0 0.00 0.00 0  0 0.0 0.0  0  0 0.0  0
2 0.5000000 0.00 0.00 0.5000000 0.0000000 0 0.00 0.00 0  0 0.0 0.0  0  0 0.0  0
3 0.3333333 0.00 0.00 0.3333333 0.3333333 0 0.00 0.00 0  0 0.0 0.0  0  0 0.0  0
4 0.0000000 0.25 0.25 0.0000000 0.0000000 0 0.25 0.25 0  0 0.0 0.0  0  0 0.0  0
5 0.0000000 0.00 0.20 0.0000000 0.0000000 0 0.00 0.20 0  0 0.2 0.2  0  0 0.2  0
6 0.0000000 0.00 0.00 0.0000000 0.0000000 0 0.00 0.00 1  0 0.0 0.0  0  0 0.0  0
  17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
2  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
3  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
4  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
5  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
6  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
  43 44 45 46 47 48 49
1  0  0  0  0  0  0  0
2  0  0  0  0  0  0  0
3  0  0  0  0  0  0  0
4  0  0  0  0  0  0  0
5  0  0  0  0  0  0  0
6  0  0  0  0  0  0  0
Calculation of Moran’s I for the Columbus Dataset with Cut-off neighbourhood

Using matrix notation with centred observations \(z\) and a row-standardised matrix \(W^{(s)}\),

\[ I= \frac{Z' W^sZ} {Z'Z}. \]

Y_s = columbus$CRIME - mean(columbus$CRIME)
lagY_s <- lag.listw(dnbTresh1.listw, Y_s)
moransI = t(Y_s)%*%weightsmatrix_s%*%Y_s/(t(Y_s)%*%Y_s)
moransI
          [,1]
[1,] 0.5518257

For the Columbus CRIME example in the lecture,

\[ I=0.5518257. \]

The reported randomisation test gives

\[ E(I)=-0.02083333,\qquad \operatorname{Var}(I)=0.01038068, \]

with a standard deviate of \(5.6206\) and a very small \(p\)-value.

moran.test(columbus$CRIME,dnbTresh1.listw)

    Moran I test under randomisation

data:  columbus$CRIME
weights: dnbTresh1.listw

Moran I statistic standard deviate = 5.6206, p-value = 9.514e-09
alternative hypothesis: greater
sample estimates:
Moran I statistic       Expectation          Variance
       0.55182569       -0.02083333        0.01038068

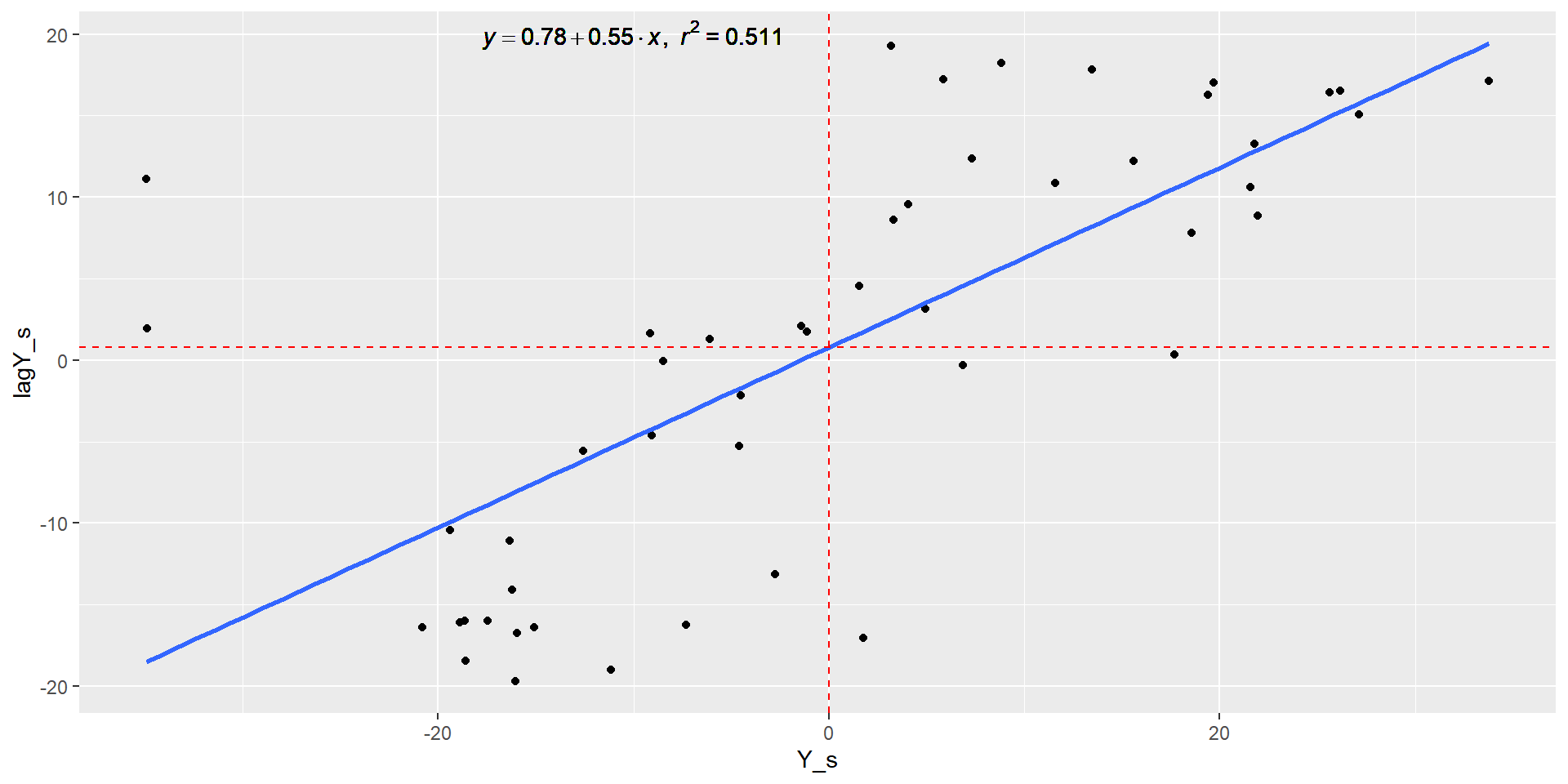

Moran Scatter Plot: Y_s vs lagY_s

The Moran scatter plot places the centred or standardised variable on the horizontal axis and its spatial lag on the vertical axis:

\[ Z_i \quad \text{versus} \quad (WZ)_i. \]

When \(W\) and \(z\) are standardised consistently, the slope of the fitted line is Moran’s \(I\).

The plot therefore links the global statistic to the local behaviour of individual observations.

lm_eqn <- function(df, y, x){
    m <- lm(y ~ x, df);
    eq <- substitute(italic(y) == a + b %.% italic(x)*","~~italic(r)^2~"="~r2,
         list(a = format(unname(coef(m)[1]), digits = 2),
              b = format(unname(coef(m)[2]), digits = 2),
             r2 = format(summary(m)$r.squared, digits = 3)))
    as.character(as.expression(eq));
}

dataMoransI = data.frame(Y_s, lagY_s)

library(ggplot2)

ggplot(dataMoransI, aes(x = Y_s, y = lagY_s)) + geom_point() + geom_smooth(method = "lm", se=FALSE)+geom_text(x = -10, y = 20, label = lm_eqn(dataMoransI,lagY_s,Y_s), parse = TRUE)+geom_vline(xintercept=0, linetype="dashed", color = "red")+geom_hline(yintercept=0.78, linetype="dashed", color = "red")

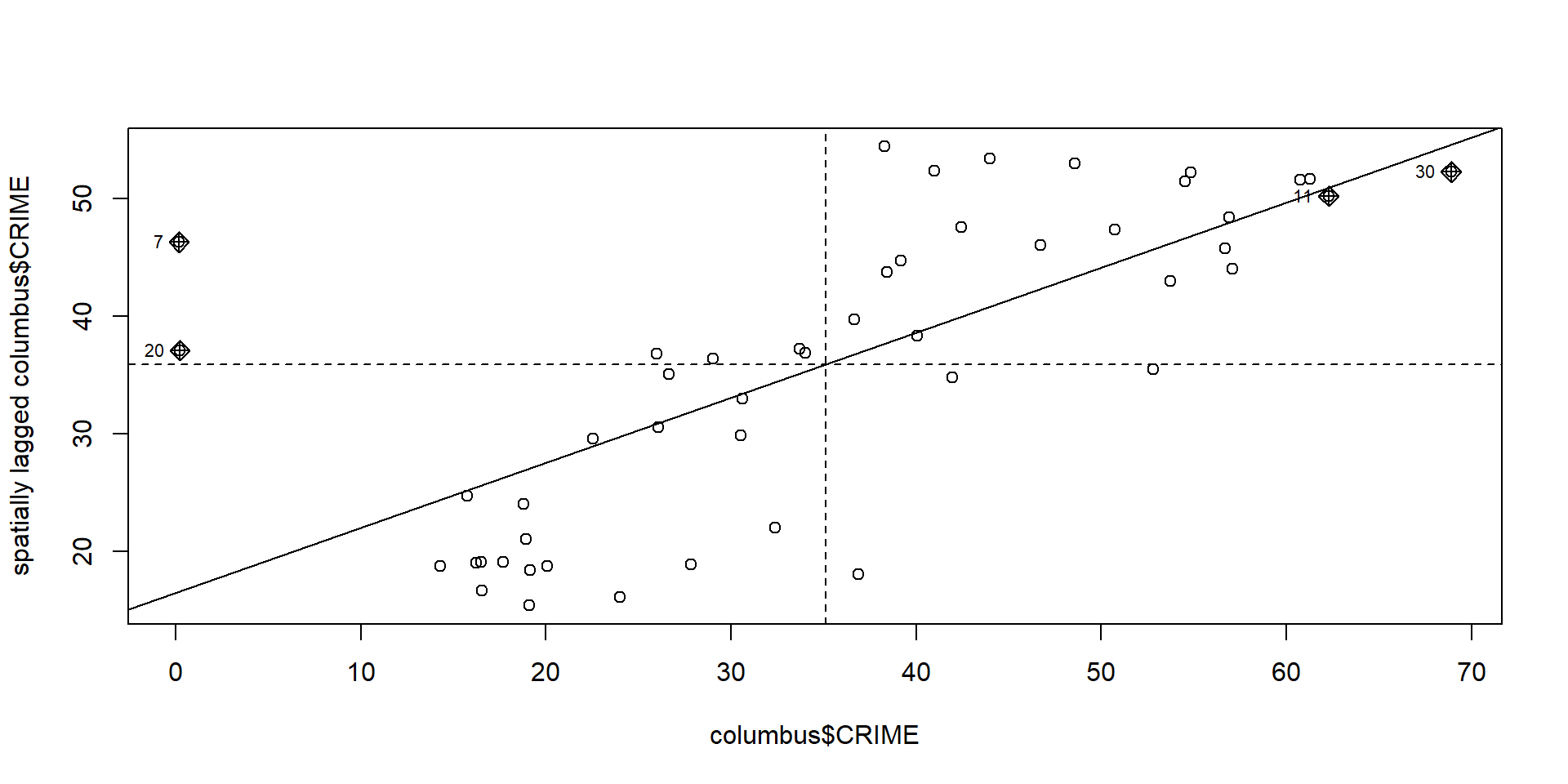

Moran’s I Plot with moran.plot () function in R
moran.plot(
  columbus$CRIME,
  dnbTresh1.listw,
  labels = row.names(columbus)
)

Moran’s I

The Moran scatter plot is partitioned into four quadrants:

Quadrant Observation Neighbours Interpretation
High–High High High positive association / high-value cluster
Low–Low Low Low positive association / low-value cluster
High–Low High Low negative association / spatial outlier
Low–High Low High negative association / spatial outlier

The High–High and Low–Low quadrants represent positive spatial autocorrelation.
The High–Low and Low–High quadrants represent negative spatial autocorrelation.

Geary’s C

Geary’s \(C\) focuses on squared differences between neighbouring observations:

\[ C= \frac{(n-1)}{2S_0} \frac{ \displaystyle\sum_{i=1}^{n}\sum_{j=1}^{n} w_{ij}(y_i-y_j)^2 }{ \displaystyle\sum_{i=1}^{n}(y_i-\bar y)^2 }. \]

where

\[ S_0=\sum_i\sum_j w_{ij}. \]

Interpretation is opposite in direction to Moran’s \(I\):

  • \(C<1\): positive spatial autocorrelation;
  • \(C\approx1\): spatial randomness;
  • \(C>1\): negative spatial autocorrelation.

Spatial Correlogram

A non-parametric spatial correlogram is an alternative way of studying global spatial dependence.

Rather than beginning with one predefined weights matrix, it examines the association between pairs of observations as a function of their separation distance.

Conceptually,

\[ \operatorname{Cov}(z_i,z_j) = f(d_{ij})+\varepsilon_{ij}, \]

where

  • \(d_{ij}\) is the pairwise distance between locations \(i\) and \(j\);
  • \(f(\cdot)\) is a non-parametric function estimated from the data;
  • a LOWESS or kernel smoother may be used.

This allows us to ask how spatial association changes as distance increases.

Spatial Correlogram

Local Measures and Tests for Spatial Autocorrelation

Local Indicators of Spatial Association (LISA) were introduced by Anselin (1995) to decompose global spatial autocorrelation into contributions from individual observations.

A common form of the local Moran statistic for area \(i\) is

\[ I_i = \frac{z_i}{m_2} \sum_j w_{ij}z_j, \]

where

\[ z_i=y_i-\bar y, \qquad m_2=\frac{1}{n}\sum_i z_i^2. \]

The summation runs over the neighbourhood of area \(i\).

The collection of local Moran statistics is related to the global Moran statistic: their sum is proportional to global Moran’s \(I\).

Identification of Local Spatial Clusters

Local spatial clusters—often called hot spots or cold spots—may be identified as locations, or sets of contiguous locations, for which a LISA statistic is significant.

The null hypothesis is no local spatial association.

Because the exact distribution of a generic LISA statistic can be difficult to obtain, a common alternative is a conditional randomisation / permutation procedure that produces empirical pseudo-\(p\)-values.

Local Moran’s I
localmoranstatistics = localmoran(Y_s,dnbTresh1.listw)
head(localmoranstatistics)
          Ii          E.Ii      Var.Ii      Z.Ii Pr(z != E(Ii))
1 0.73681849 -0.0285985420 0.666144891 0.9378077     0.34834327
2 0.65915397 -0.0202502140 0.475741297 0.9850149     0.32461676
3 0.03579329 -0.0015396867 0.024041007 0.2407777     0.80972741
4 0.13113818 -0.0005707572 0.006541757 1.6284260     0.10343458
5 0.69380337 -0.0184931910 0.162742823 1.7656716     0.07745096
6 0.15242670 -0.0062384562 0.303777355 0.2878749     0.77344247
columbus$localmoran = localmoranstatistics[,1]

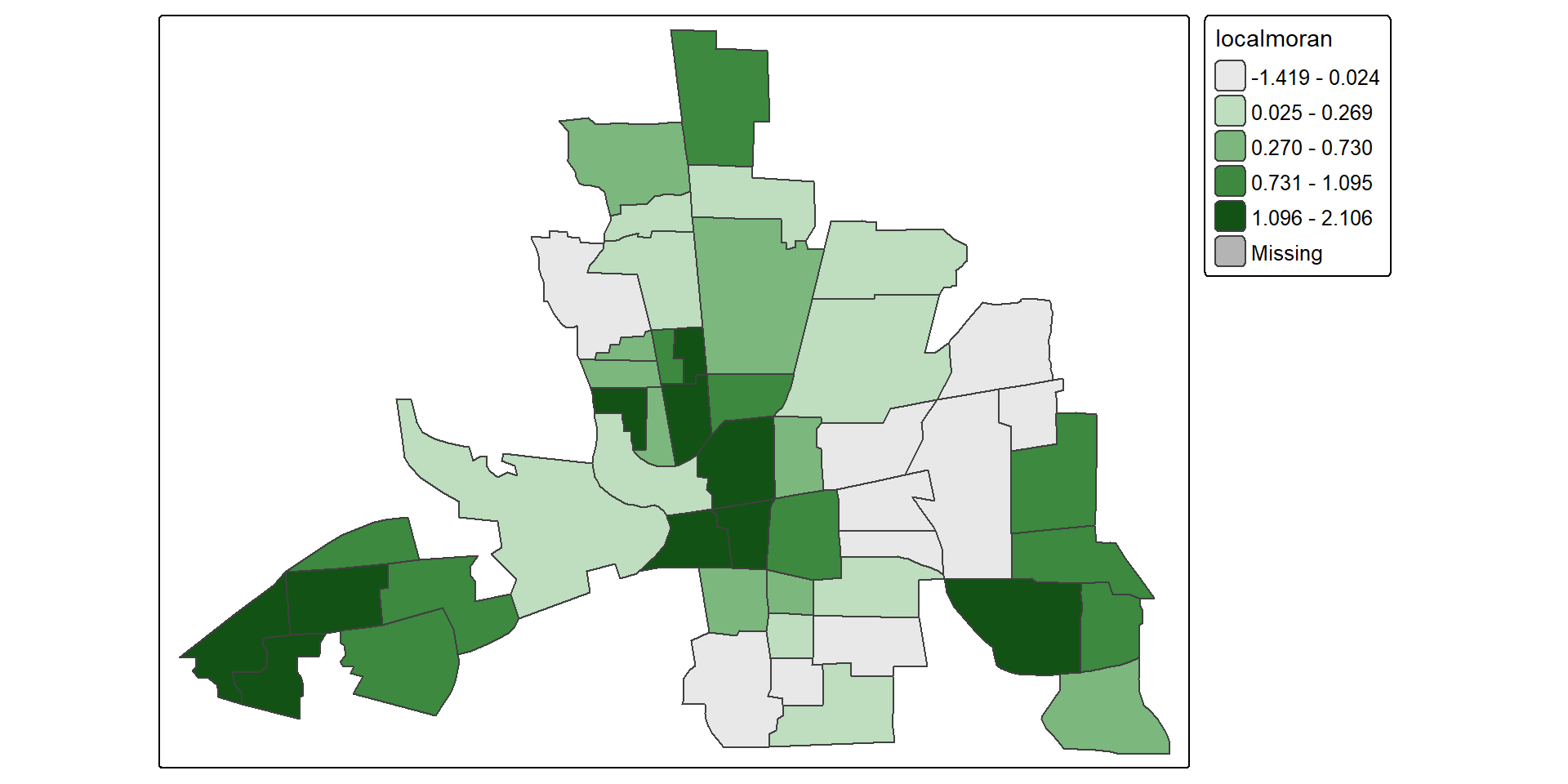

Plot of the Local Moran Statistics

tm_shape(columbus) + tm_polygons(style="quantile", col = "localmoran") +
     tm_legend(outside = TRUE, text.size = .8)

Local Moran in R

In R, local Moran statistics can be calculated with spdep::localmoran():

localmoranstatistics <- spdep::localmoran(
  Y_s,
  dnbTresh1.listw
)

localmoranstatistics
             Ii          E.Ii       Var.Ii        Z.Ii Pr(z != E(Ii))
1   0.736818491 -2.859854e-02 0.6661448908  0.93780765   0.3483432685
2   0.659153968 -2.025021e-02 0.4757412970  0.98501488   0.3246167634
3   0.035793288 -1.539687e-03 0.0240410072  0.24077770   0.8097274126
4   0.131138176 -5.707572e-04 0.0065417568  1.62842603   0.1034345818
5   0.693803371 -1.849319e-02 0.1627428232  1.76567158   0.0774509642
6   0.152426700 -6.238456e-03 0.3037773549  0.28787494   0.7734424674
7  -1.418605235 -9.279429e-02 0.7547857820 -1.52605345   0.1269965546
8   0.103319296 -8.257717e-04 0.0050383143  1.46722284   0.1423154446
9   0.088187389 -1.616451e-03 0.0386977724  0.45651171   0.6480220495
10 -0.007156422 -9.665465e-05 0.0047356202 -0.10258928   0.9182889508
11  1.489116910 -5.598153e-02 0.2387512105  3.16215652   0.0015660536
12  0.834073870 -3.536625e-02 0.1351553596  2.36495586   0.0180322198
13  0.459183376 -1.019948e-02 0.0526252173  2.04611609   0.0407449499
14  0.708918984 -3.655778e-02 0.1591203691  1.86883613   0.0616456170
15  0.875366588 -1.375586e-02 0.0828431006  3.08911022   0.0020075694
16  1.223927852 -2.951083e-02 0.1293875235  3.48463177   0.0004928147
17 -0.108094629 -2.299782e-04 0.0035956407 -1.79883361   0.0720450046
18  0.587470453 -5.927816e-03 0.0266215244  3.63688706   0.0002759529
19  1.151223098 -2.856995e-02 0.1694747499  2.86584918   0.0041589234
20 -0.247951607 -9.255269e-02 0.7530211176 -0.17907889   0.8578757561
21  0.057144088 -1.857760e-03 0.0908611332  0.19573863   0.8448147484
22 -0.010918574 -1.539914e-04 0.0011236363 -0.32113253   0.7481099581
23  0.900849470 -1.727564e-02 0.2654944353  1.78186236   0.0747716792
24  0.222445111 -7.629051e-04 0.0046550365  3.27150994   0.0010697483
25  1.576737186 -5.202741e-02 0.2570965315  3.21225647   0.0013169675
26  0.366611808 -2.591644e-03 0.0188644701  2.68808779   0.0071862501
27  0.023496701 -2.370665e-02 0.1689066665  0.11485488   0.9085601515
28  1.054294593 -3.607164e-02 0.1219320577  3.12257905   0.0017927395
29  1.534813119 -4.986851e-02 0.2893304273  2.94608293   0.0032182610
30  2.106237710 -8.659660e-02 0.5772443881  2.88619691   0.0038992811
31  1.017447516 -2.313578e-02 0.5419314656  1.41352881   0.1575002960
32  0.975052651 -1.940628e-02 0.2975917603  1.82295690   0.0683099184
33 -0.008281905 -3.553378e-03 0.0258399512 -0.02941576   0.9765330041
34  0.771608734 -9.452275e-03 0.1464202875  2.04119422   0.0412315257
35  0.140766915 -1.243695e-03 0.0090650426  1.49154332   0.1358189064
36  1.243242522 -3.293904e-02 0.2856021104  2.38798590   0.0169409917
37  0.330451865 -4.066216e-03 0.0247289081  2.12724311   0.0333998888
38  0.529422011 -2.623031e-02 0.1153931242  1.63573582   0.1018948896
39  1.151957408 -1.951505e-02 0.4588139896  1.72947288   0.0837244959
40  1.109043195 -2.709962e-02 0.6322045881  1.42890746   0.1530308318
41  0.831677994 -1.999456e-02 0.3064288938  1.53853646   0.1239175009
42  1.086553172 -2.638530e-02 0.6159922141  1.41802388   0.1561837935
43  0.025506418 -1.789410e-04 0.0008082627  0.90346090   0.3662813328
44 -0.055325820 -6.383017e-03 0.0462851033 -0.22749310   0.8200403375
45 -0.028304126 -2.826966e-03 0.0252748048 -0.16025335   0.8726815086
46  1.249537703 -2.627600e-02 0.6135092567  1.62883353   0.1033482644
47  0.432196383 -4.054787e-03 0.1978789359  0.98070146   0.3267399841
48  0.002170906 -5.467253e-03 0.0396811746  0.03834391   0.9694134795
49  0.254910325 -1.203595e-02 0.1363680392  0.72288227   0.4697522160
attr(,"call")
spdep::localmoran(x = Y_s, listw = dnbTresh1.listw)
attr(,"class")
[1] "localmoran" "matrix"     "array"
attr(,"quadr")
        mean    median     pysal
1    Low-Low   Low-Low   Low-Low
2    Low-Low   Low-Low   Low-Low
3    Low-Low   Low-Low   Low-Low
4    Low-Low   Low-Low   Low-Low
5  High-High High-High High-High
6    Low-Low   Low-Low   Low-Low
7   Low-High  Low-High  Low-High
8  High-High High-High High-High
9    Low-Low   Low-Low   Low-Low
10  Low-High   Low-Low  Low-High
11 High-High High-High High-High
12 High-High High-High High-High
13 High-High High-High High-High
14 High-High High-High High-High
15 High-High High-High High-High
16 High-High High-High High-High
17  High-Low  High-Low  High-Low
18 High-High High-High High-High
19 High-High High-High High-High
20  Low-High  Low-High  Low-High
21 High-High High-High High-High
22  Low-High  Low-High  Low-High
23   Low-Low   Low-Low   Low-Low
24 High-High High-High High-High
25 High-High High-High High-High
26 High-High High-High High-High
27  High-Low  High-Low High-High
28 High-High High-High High-High
29 High-High High-High High-High
30 High-High High-High High-High
31   Low-Low   Low-Low   Low-Low
32   Low-Low   Low-Low   Low-Low
33  High-Low  High-Low  High-Low
34   Low-Low   Low-Low   Low-Low
35 High-High High-High High-High
36   Low-Low   Low-Low   Low-Low
37 High-High High-High High-High
38 High-High High-High High-High
39   Low-Low   Low-Low   Low-Low
40   Low-Low   Low-Low   Low-Low
41   Low-Low   Low-Low   Low-Low
42   Low-Low   Low-Low   Low-Low
43 High-High High-High High-High
44  Low-High   Low-Low  Low-High
45  Low-High   Low-Low  Low-High
46   Low-Low   Low-Low   Low-Low
47   Low-Low   Low-Low   Low-Low
48   Low-Low   Low-Low   Low-Low
49   Low-Low   Low-Low   Low-Low

The output provides a local statistic for every spatial unit, together with quantities used for inference.
